Energy saving and environmental protection、stable、Dual zone heating and holding power supply;

Vertical horizontal furnace configurations adapt to customer situation;

Side opening door melt coils door mounted can rapid exchange and repair without any power connections internal to the vacuum chamber (no insulating of connections required);

More applicability with motor drive system;

Horizontal or vertical billet charging，with liner insertion/removal capability under vacuum.

Melt coil horizontal translation system for accurate pouring with memory function;

Using optical pyrometer to achieve automatic temperature control of liquid metal;

Large capacity three-stage vacuum system to realize the rapid evacuation of mold chamber;

Precision mold withdrawal system with electromechanical or hydraulic servo control (DS/SC);

No water-cooled cable connection in the melting chamber which is safer during operation;

Multi-zone induction or resistance heat mold heater can be designed in the melting room;

High speed mold transfer with multi position control (Equiax);

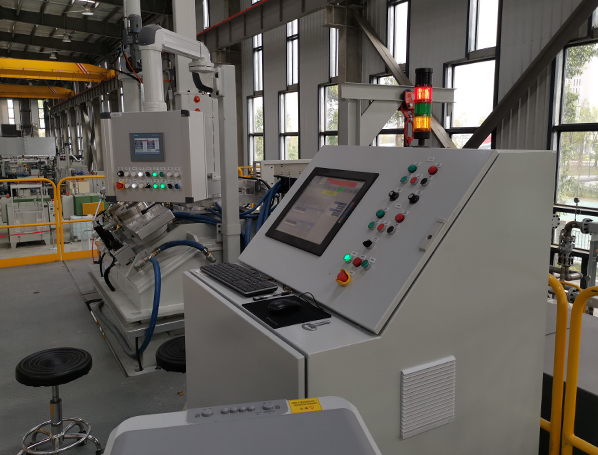

Automatic melting control based on upper HMI and lower PLC system;

Special damping design is adopted for ingot pulling drive device;

Induction graphite and resistance graphite are available as insulation power supply option;

Automatic Baffle Exchange – Exchange Baffles under vacuum without turning off mold heater.

Client Type:

Aviation aerospace and navigation field

New material field

Scientific research institutes

Product Type:

Equiax  precision casting

Directionally solidified casting

Single-crystal casting

Anti gravity large complex thin wall castings
